With track adapter,direct,rotation symmetrical,
Beam angle adjustable from 10° to 55°,
CITIZEN COB, 3300lm,3000K,CRI>80,TRIDONIC Converter,
Total Power :35W
Track spotlight,Luminaire Housing is Die-casting Aluminium,Optical system: reflector optics,Acrylic,can be rotated,tilt,direct
CE,IP20
Housing Color: White or Black
Name: | 20W Triac Dimm Track lighting 3000K |
---|---|
LED: | CITIZEN |
Driver: | BOKE |
Certification: | CE |
Warranty: | 5 years |

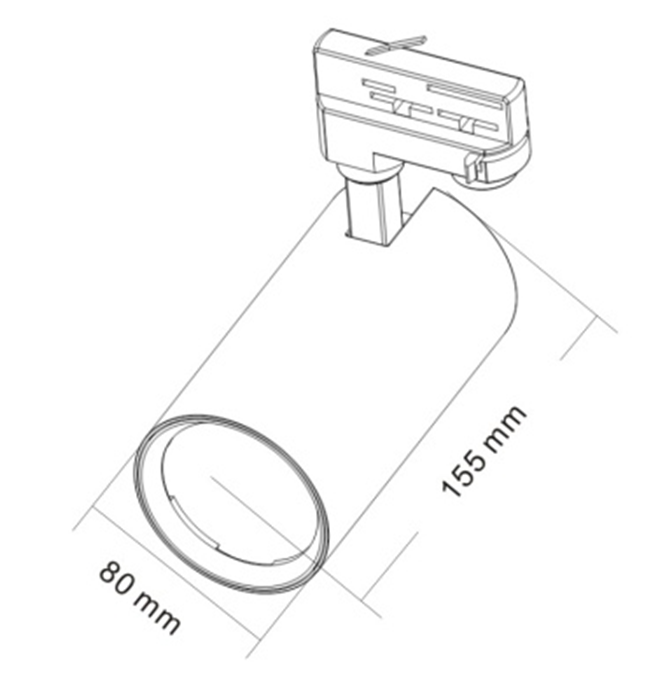

Size: | D80XH155mm |
Housing color: | White/Black |
Optic: | Lens |
Beam: | 15/24/38/60 |
Dimmable: | Triac |

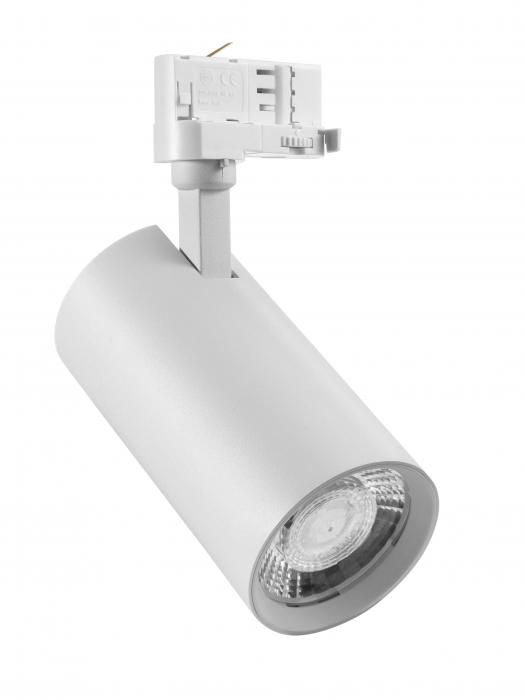

D80 LED TRACK LIGHT: HA-E20/Triac Dimm with Lens
Technical Parameter
Wattage:
20/25/30W Lumen: 90-100lm/w
PF: >0.9 Input: AC220-240V
50-60Hz
SDCM: <3 Beam angle:
15°/24°/38°/60°
THD: <15 Color rendering index:
83/92/97Ra
IP Rate:
IP20 Dimming: NON /Triac
Protection class: Ⅱ Housing Color: Black/White
Warranty: 3
years Operation temperature: ‐20℃―50℃
Connector: 2 wires/3 wires/4
wires
Color
temperature: 2700K/3000K/3500K/4000K/5000K
Product features
ü High
CRI 97, Low SDCM <3
ü High
efficiency, high luminance
ü Glare-free
design, perfect light spot and accurate beam angle
ü Flicker
free driver
ü Alu-cast
housing with convective holes for optimal heat dissipation
ü Internal,
low-temperature operating driver
ü Rotatable
horizontal 355° and vertical 90°
