  • LED strip light SMD3528 60LEDs/M
Name:LED strip light SMD3528 60LEDs/M
Model No::0

Product Description

FEATURES:
1000mm*8mm SMD Light Ribbon(60PCS LED).
Working Voltage：DC12 V/24V.
Working Current：340-380mA.
LED View Angle：120 DEG.
Grade of Waterproof IP20/IP65/IP67/IP68.
Package:5meters /Rell.
APPLICATIONS:
Path&contour marking.
Legend backlighting.
Illuminated signs.
Mood and special light.

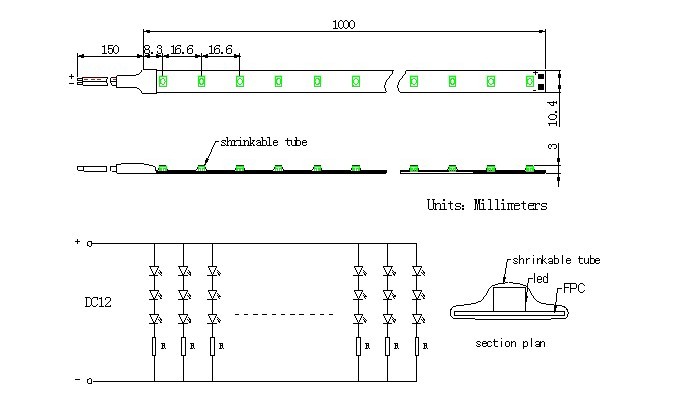

Dimensions and Schematic Diagram:
Absoute Maximum Rating at TA=25°C
Parameter
Symbol
Absoute Maximum Rating
Unit
Forward Current
IF
400
mA
Power Dissipation
PD
4.8
W
Elestrostatic discharge
ESD
800
V
Operating Temperature
Topr
-25~+60
°C
Storage Temperature
Tstg
-40~+80
°C
Electrical／Ｏptical Characteristics at TA=25°C
Part Number
Color
Led Qty
Led Work Current
Wave Length
Led Luminous Flux
Packing
HA-RP3528RP30-F
□Red
60
340-380mA
625-630nm
50-60Lm
5meters/reel
HA-RP3528YP30-F
□Yellow
60
340-380mA
590-595nm
70-80Lm
HA-RP3528BP30-F
□Blue
60
340-380mA
465-470nm
48-60Lm
HA-RP3528GP30-F
□Green
60
340-380mA
515-520nm
110-120Lm
HA-RP3528PWP30-F
□Pure White
60
340-380mA
6000-7000k
150-180Lm
HA-RP3528LWP30-F
□Cool White
60
340-380mA
8000-9000k
150-180Lm
HA-RP3528NWP30-F
□Warm White
60
340-380mA
2900-3200k
120-160Lm
Notes:Tolerance of measurement of luminous intensity±15%.
